So this was an idea I had way back at Maker Faire in 2007. It got me just inspired enough to buy a pump and a couple of the Legos, and then I let the whole thing sit around in my file cabinet at work for two years.

Finally, I got off my butt and followed through with it. All-in-all, I’m pretty happy with how it turned out, so I thought I’d share with you what I did in case you’re ever inspired enough to build your own…

Part 1: Making the structure

This was by far the toughest part. Although I had an image in my head as to how it would all look when it was finished, I didn’t really know how you would start creating a plastic base. Particularly given that I live in an apartment, and apartment life isn’t really condusive to power tool usage.

Luckily, when I went to Maker Faire this year, Tap Plastics (the fantastic plastic place) had a booth set up where they advertised their plastc custom-cutting services. Thanks, guys!

So step 1 required drawing out the supports that I needed. These are 16″ wide and 5″ high, with 4″ long slots cut in them to hold the base.

From LegoFountain

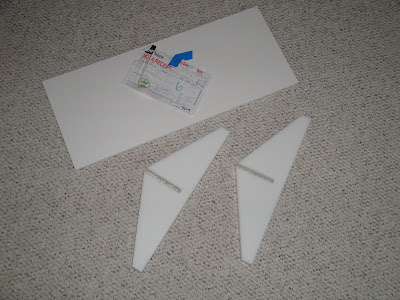

I took the drawing in to Tap Plastic and, thanks to a lot of help from a guy named Edgar, in 24 hours I had this. The large rectangle  is 24 3/4″ x 10 1/8″ x 3/8″ thick plastic that he called “Komtzey”, which has a rougher surface, so it works quite well with adhesive. The bottom portions are 1″ thick HDPE, which is the plastic they use in cutting boards.

From LegoFountain

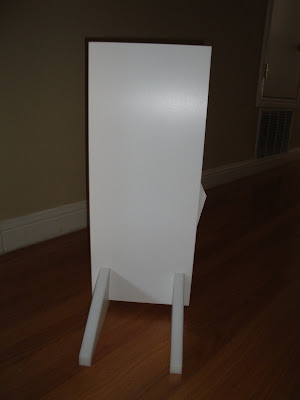

Putting ‘em all together got me this. Cool, huh?

From LegoFountain

In case you’re wondering why I didn’t make the base out of Legos, too, it’s mostly because I looked up how much it would cost to order enough Legos to make make something of that size and it was really expensive. Also, I wasn’t quite sure how sturdy it would be.

Part 2: Adding the Lego base

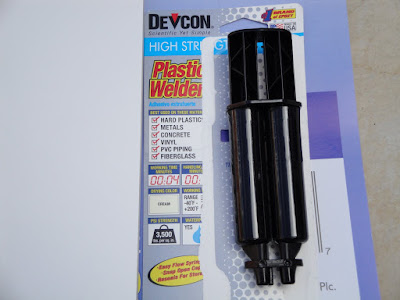

The next step was gluing on some green Lego bases to the big rectangle. I had this glue leftover from when I fixed the light in our kitchen. It’s super strong, and waterproof, which is nice.

From LegoFountain

These are the bases I used.

From LegoFountain

The glue is one of those dealies where you gotta mix the 2 parts together. Like I said, it’s amazingly strong, but you don’t get much of it, and a lot of the glue got “lost” behind the little divots in the Lego bases. If I were to do it again, I’d probably get twice as much glue, or use a glue that gives you a little more in the quantity department. Still, it’s been holding up so far…

From LegoFountain

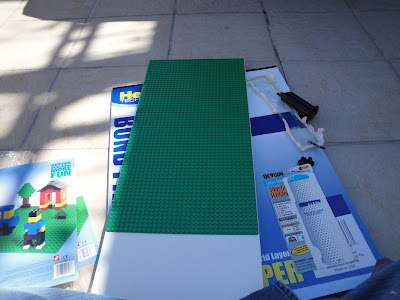

These are the Lego bases glued on to the white plastic. And yes, it’s a good thing I was working outside — those fumes are strong!

From LegoFountain

They found it important to tell you that bricks were not included with the thin plastic base. Just in case you weren’t familiar with the law of conservation of mass.

From LegoFountain

Part 3: Making it a Fountain

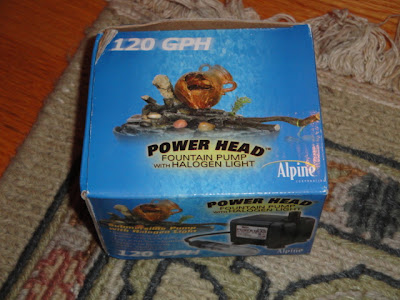

This is the pump I used. It comes with a light (ooooh) and a nifty little flow control, just in case the water came out too strong. As it turns out, maximum power was just the right amount.

From LegoFountain

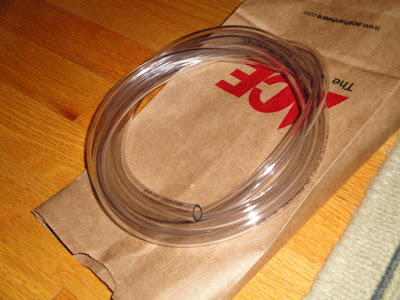

Here’s some tubing I picked up from the local hardware store.

From LegoFountain

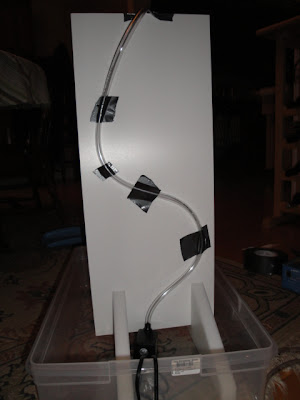

I taped the tubing to the back of the base like this using some water-resistant duct tape. I cut it a little long and gave it a curvy path just in case I needed more tubing. As it turns out, I did…

From LegoFountain

I needed to make the end of the tube come in at a little more of a right angle so that the water flowed out just right, so I’m glad I had cut it long. (In fact, I ended up cutting it a little too long — the pump didn’t quite have enough oomph to get the water all the way up the curvy tube, so I cut some off at the bottom and straightened it out a little bit.)

From LegoFountain

Part 4: Adding Legos!

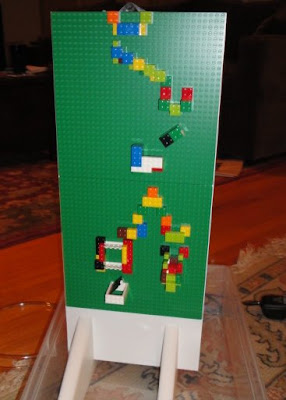

This was version 1 of the path I tried to make for the water with the Legos. Turns out this was a little too fine and intricate. Some water went down the path, but there was enough splashing and dripping that you couldn’t really tell

From LegoFountain

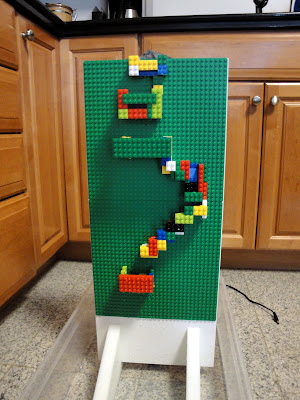

So this is version 2. This worked a whole lot better. The whole thing is sitting in just a bin I picked up from The Container Store.

From LegoFountain

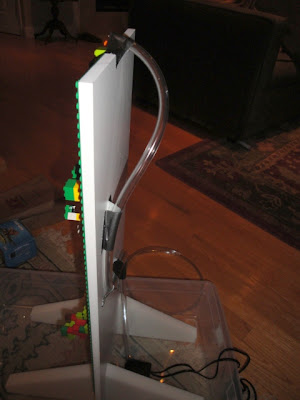

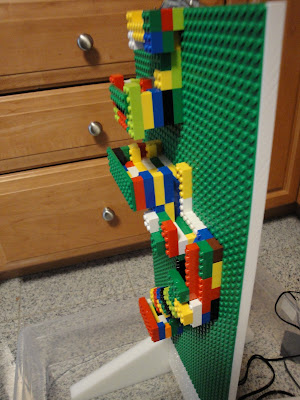

I don’t know if you can tell by the side view, but I played a little with dimensionality — the water flows out from the base a little bit near the top there.

From LegoFountain

And here’s the entire thing in motion! I’m still getting some dripping here and there (Legos aren’t water-tight, after all), but the thing actually works.

Like I said, I’m pretty happy with how it all turned out. I’m not entirely sure this is of a scope or quality to impress the Maker Faire crowd, however. I think I’d probably want to make the entire structure a whole lot bigger, and custom order some Lego sets that would let me do fun things like add waterwheels and see-saws and stuff, and all of that probably involves a larger investment of time, money, and free space in our kitchen than I’m willing to commit to at this point. But if any of you get inspired to make a Lego fountain of your own, let me know! I’d love to hear about it.
